振動圓錐破碎機
振動圓錐破碎機是破碎技術的新一代產品,融合了先進的常規破碎和磨碎原理,能夠產出前所未有數量的細碎產品。運用了美礦處理技術的可以節省高達30-40%的能源。 客戶已經證明了產品技術和操作的可靠性。
產品特點：新型專利，磨碎原理，更多細碎產品，高效節能
進料粒度：80-500mm
生產能力：60-1000t/h
適用物料：河卵石、花崗巖、玄武巖、鐵礦石、石灰石、石英石、輝綠巖、建筑垃圾、鐵礦、金礦等
我要租
分享
熱線電話134-8218-0158
振動圓錐破碎機是破碎技術的新一代產品,融合了最好的常規破碎和磨碎原理,進而能夠產出前所未有數量的細碎產品。運用了美礦處理技術的創新型振動圓錐破碎機可以節省高達30-40%的能源。
The Vibration Cone Crusher Is the coming generatlon of crushing technology, combining the best of conventional crushing and grinding princlples to produce an unprecedented amount of finely crushed product. The Innovative Vibration Cone Crusher enables up to 30-40% energy savings by adoptIng Mackorn processIng technology
振動圓錐破碎機是由俄國人 Leonld Petrovich Zaragatsky設計的,他也是擁有1978年美國專利(專利號US4073446)關鍵人員之一。在超過35年的發展后,振動圓錐破轉變成了現實,目前這些專利由來自中國的上海美礦機械股份有限公司和來自南非的 Sarathan公司共同擁有。
The Vibration Cone Crusher is designed by a Russlan-Leonld Petrovich Zaragatsky, who is also one of the key persons holdIng the US patents(No. US4073446 )In 1978, after more than 35 years development, the Vibration Cone Crusher has come Iinto truth, now these patents are owned by both Shanghal Mackorn MachInery Co, Ltd from China and Sarathan from South africa

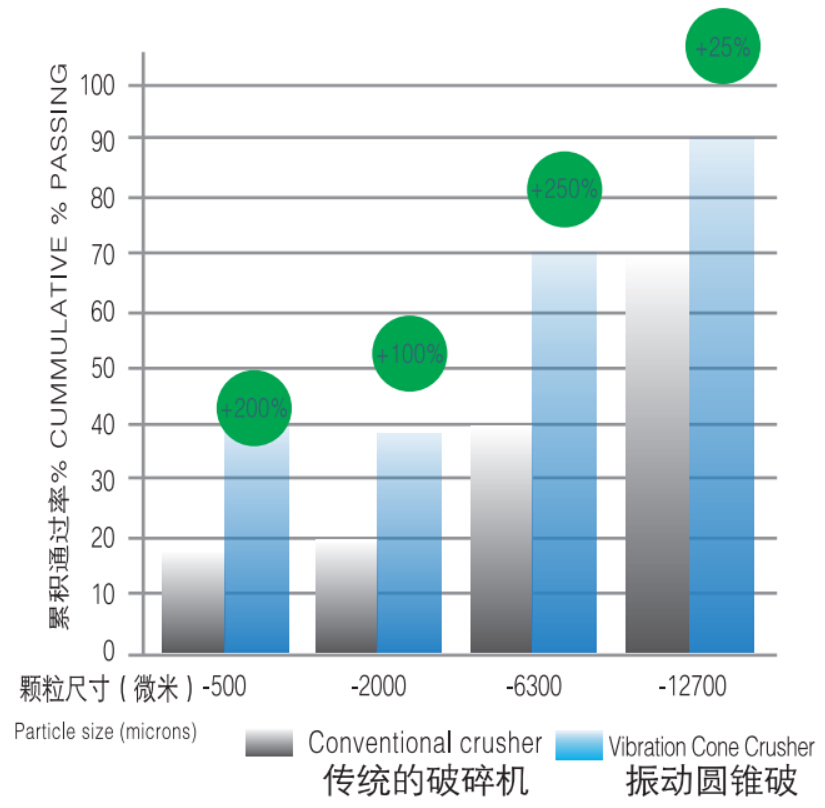

振動圓錐破可以同時達成粗磨和細碎的功用,可以取代棒磨機或球磨機,對精簡產線提高作業率大有益處。
Vibration Cone Crusher can accomplish the rough mining and fine crushing, and replace the rod mills or ball mills Greatly beneflclal to simplify the productlon line and increase the operatlon efflclency.
技術數據
| 參數Paramteer | 磨錐底部直徑Diameter of grinding cone bottom ，mm | ||||||
| 1000 | 1300 | 1600 | 1800 | 2000 | 2200 | 2500 | |
|
*產能（噸/=小時） *Capacity（t/h) |
60-120 | 160-220 | 220-250 | 250-320 | 350-450 | 500-700 | 700-1000 |
|
最大進料尺寸 feeding max（mm) |
80,100,120 | 100,150,200 | 150,180,200 | 180,200,220 | 200,250,300 | 300,350,400 | 350,400,500 |
|
應用于碎石生產 -for break stone production |
25 | 25 | — | 25 | 25 | 25 | 25 |
|
應用于開路磨碎 -for grinding in open cycle |
7 | 8 | — | 10 | 11 | 12 | 14 |
|
開式循環磨碎尺寸小于100μm的百分比（%） Percentage of size less than 100 μm atgrinding in open cycle，% |
32 | 27 | — | 25 | 22 | 19 | 16 |
|
電機功率（千瓦） Motor power（KW） |
160-200 | 250-320 | 315-355 | 355-400 | 500-600 | 630-800 | 800-1000 |
| 長-（mm）Length（mm） | 3560 | 4180 | — | 5000 | 5700 | 6100 | 6500 |
| 寬-（mm）Width（mm） | 2100 | 3700 | — | 3200 | 3700 | 3800 | 40 |
| 高-（mm）Height（mm） | 3030 | 4000 | — | 4630 | 5350 | 6000 | 6500 |
| 重量（噸）Weight（T） | 21 | 32 | 50 | 70 | 100 | 120 | 150 |
取決于破碎材料的強度
(depends on strength of crushed material)
可以是355-400；低于400千瓦可以用380伏電機；否則是6千伏和10千伏
(could it be 355-400；less than 400KW which can be used 380V motor；otherwise it will be 6KV and 10KV)
振動圓錐破碎機已經應用于南非的 Centra Rand金礦,相比普通的礦石處理設備,振動圓錐破碎機節能的范圍可以達到30~32%,客戶已經證明了產品技術和操作的可靠性。
The Vibration Cone Crusher has been used in Central Rand Gold in South Africa, its energy savings can reach the range of 30-32% comparing to the normal processing, and the customers have proved the technical and operational reliabilit
